The wiring can take up more than 80 % of the chip area in an integrated circuit, which is why techniques have been developed to stack the wiring in several layers on top of one another. This allows the total length of the interconnects to be reduced by up to 30 % with just one additional layer. In a modern processor, the interconnects add up to a total length of several tens of kilometers.

Insulation layers are deposited between the wiring layers, and the individual layers are connected to one another through contact openings (VIA, vertical interconnect access). Today, about ten to twenty wiring layers are common.

These layers are not all built the same way, but are graded according to their function:

Local wiring

The lowest layers connect neighboring transistors over short distances. They have the finest dimensions, the highest resistance per unit length, and are produced using the most demanding lithography processes.

Intermediate layers

These connect functional blocks within the chip; the width and thickness of the interconnects increase with each layer.

Global wiring

The uppermost layers carry the clock signal and supply voltage across the entire chip. They are many times wider and thicker than the lowest layers, because they carry large currents while the voltage drop across them must be kept as small as possible.

Steep edges and steps have to be smoothed out, since the conformity of the deposited metallizations is low, resulting in constrictions that are then subjected to very high current densities. The consequence: the interconnects age prematurely or break. In addition, the exposure of fine structures has only a shallow depth of focus and therefore requires a flat surface. There are several ways to planarize the surface and remove these edges and steps, which are explained below.

In the reflow technique, layers of doped glasses are deposited onto the wafer. Widely used are phosphosilicate glass (PSG) and borophosphosilicate glass (BPSG). In a high-temperature step, the glasses flow and form a level surface: for PSG and BPSG, this happens at about 900 °C. However, this technique is not suitable for planarizing a wiring layer, since the aluminum would melt under these high temperatures.

Its range of application is therefore narrow: the process can only be used before the first metal layer, as long as no metal is yet present on the wafer. Even there, it has largely been superseded, because the temperature alters the doping profiles already introduced, and because the reflow only planarizes locally – the surface remains uneven across the entire wafer. The chemical mechanical polishing process accomplishes both better.

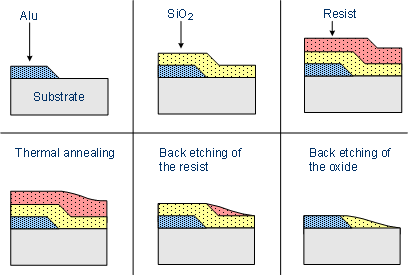

A silicon dioxide layer is deposited onto the wafer, at least as thick as the highest step on the wafer. A resist or polyimide layer is then spin-coated onto the oxide layer and thermally treated for stabilization (see photolithography); the temperature causes the layer to flow.

In a dry etch process, the resist or polyimide and the silicon dioxide are removed at equal etch rates, leaving behind a planarized oxide surface.

In addition to the technique using resist or polyimide, so-called spin on glass (SOG) can also be applied to the wafer. Likewise deposited by spin coating, this directly produces a planarized layer, which is stabilized by a thermal treatment. In this case, the preceding silicon dioxide layer is not required. However, these techniques do not provide uniformity across the entire wafer, but only level out steps locally.

This is precisely where they failed. They smooth the area surrounding an individual step, but leave the large-scale height differences across the wafer unchanged – and it is precisely these that interfere with the exposure of fine structures. Both processes have therefore been superseded by chemical mechanical polishing and are today only of historical interest.

In chemical mechanical polishing (also chemical mechanical planarization, CMP for short), a uniform surface is achieved across the entire wafer, unlike with reflow techniques. This is especially important with regard to lithographic processes, which require as planar a surface as possible for correct exposure. Likewise, a wafer surface without topography is advantageous for all subsequent layers.

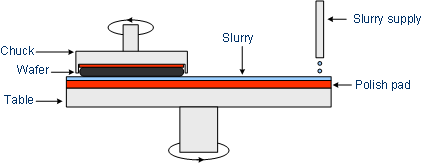

For this purpose, the wafer is held with its active side facing down in a chuck with vacuum suction (head) and pressed onto a polishing surface (pad, usually made of polyurethane) on the polishing table. The head and the polishing table rotate, while the head can simultaneously perform horizontal movements. A solution (slurry) of abrasives and chemical substances serves as the polishing medium between the table and the wafer; under pressure, these substances alter the surface and thus support the polishing process. To better distribute the slurry and to condition the polishing cloth, the pad can be roughened using a steel disc studded with diamonds (dresser/conditioner). This is done either during the polishing step (in-situ) or before/after it (ex-situ).

The CMP process is usually carried out in two or three stages, on pads with different surfaces and using different slurries. For this purpose, the wafers are transferred to the next pad after each polishing step. Afterward, a cleaning step removes particles and slurry residues.

Typically, the CMP process is used after depositing the TEOS for shallow trench isolation, to remove the oxide until only the isolation between the active areas of the transistors remains. Likewise, the interlayer dielectric between the transistor level and the first metal layer (first contact) is polished back to the required thickness using CMP. In this oxide, the contacts to the source and drain regions are subsequently made using tungsten. Here too, chemical mechanical polishing serves to remove the metal on the surface. As described in the chapter Damascene process, the copper wiring layers are likewise planarized in a CMP process.

The following describes the CMP process with two polishing steps in the STI area. After the first polishing step, the oxide on the active area and over the trenches is planarized. In the second polishing step, the remaining oxide is then removed in a selective process down to the passivation layer. It is important here that the oxide be completely removed from the areas where the transistors will later be fabricated, since otherwise the nitride, which protects the underlying silicon during polishing, cannot be removed by wet chemistry.

Dishing and erosion

The process has a peculiarity that extends all the way into circuit design: it removes soft areas faster than hard ones. Over a wide copper area, the polishing pad is pushed into the trench and hollows it out (dishing); in areas with many closely spaced interconnects, the entire region is lowered relative to its surroundings (erosion). Both create exactly the kind of unevenness that polishing is supposed to eliminate, and neither depends on the process itself but rather on how the layout looks.

The countermeasure is unusual: metal structures with no electrical function are inserted into empty areas of the layout, serving only to ensure that the metal density is uniform across the chip. These fill structures are generated automatically and, on some layers, make up a considerable portion of the pattern.

Even though this process may seem rather crude, it is nevertheless capable of producing a surface that is planar to within a few nanometers. It is by no means a special, occasional step anymore: in a modern process flow, a wafer is polished several dozen times.

To connect the metal layers, contact holes are etched into the insulation layers with very high anisotropy, so that edges at the contact holes are avoided. The contact holes have to be filled in such a way that, on the one hand, optimal contacting is ensured and, at the same time, the surface remains planar.

Tungsten has proven suitable for filling the contact holes. With the addition of silane, a thin layer of tungsten is deposited from tungsten hexafluoride as a nucleation seed in a CVD process; silicon tetrafluoride and hydrogen fluoride are exhausted as byproducts:

With the addition of hydrogen to tungsten hexafluoride, the contact holes are then filled:

The advantage of this process is that deposition from the gas phase fills even narrow, deep holes evenly from the inside out, whereas an evaporated or sputtered metal would close off the opening at the top and enclose a cavity. Tungsten is therefore deposited over the full area and subsequently polished back using CMP until it remains only in the holes.

The next metal layer can then be deposited on top, patterned, and planarized. When copper is used as the metallization, tungsten is only needed for the first contact to the silicon substrate. The connection of the individual copper layers is made with the copper itself.

The contact as a bottleneck

As dimensions shrink, the problem shifts. The resistance of a contact is made up of the resistance of the fill metal, that of the barrier, and the transition resistance to the silicon. The first two components increase rapidly as the cross-section shrinks, because tungsten requires a comparatively thick adhesion layer of titanium and titanium nitride, which itself conducts poorly. In the lowest layers of modern processes, tungsten is therefore being replaced by cobalt or ruthenium: both have a higher resistivity than tungsten, but require only a very thin adhesion layer, or none at all. For the smallest contacts, the fill therefore conducts better overall, even though the material itself conducts worse.
